Description

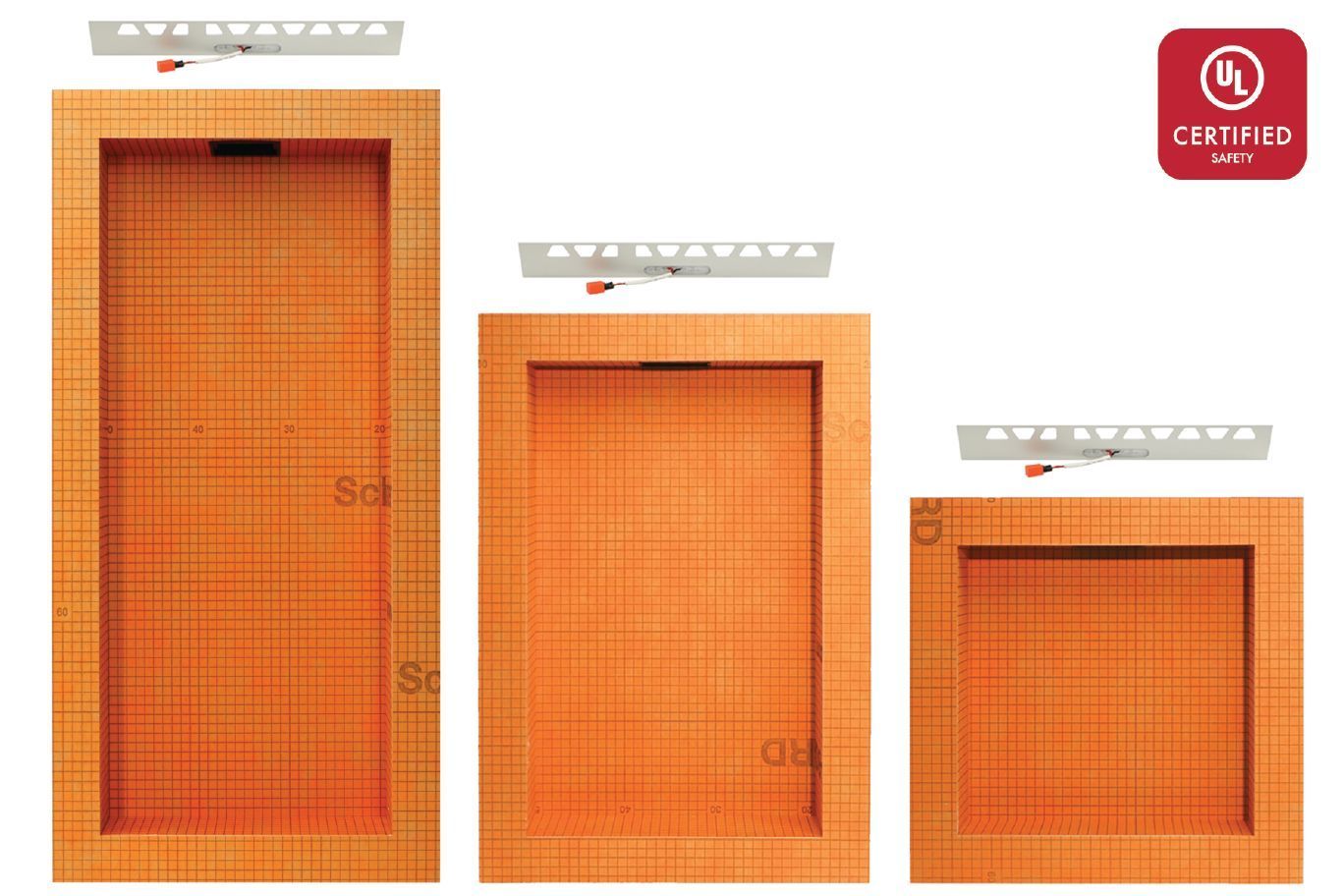

Schluter-KERDI-BOARD-SNLT is a prefabricated shower niche made of KERDI-BOARD that incorporates a mounting profile with a diffused LED light strip. It features a pre-installed waterproof connection box to ensure the electrical connection is code-compliant. The KERDI-BOARD-SNLT can be installed in both KERDI and KERDI-BOARD wall assemblies. The shower niche features a 1/2″ (12.5 mm) -thick by 2″ (50 mm) -wide integrated bonding flange and is available in 12″ x 12″ (30 cm x 30 cm), 12″ x 20″ (30 cm x 51 cm), and 12″ x 28″ (30 cm x 71 cm) sizes and is designed for a vertical installation.

The mounting profile is made of anodized aluminum with satin finish (AE). It is 11.8″ (300 mm) long to fit along the top of the niche and features a cut out designed to pass the cable through. The LED light strip is encased in a silicone tube that provides an evenly diffused line of light and nests into the mounting profile. The LED emits a warm white light measuring 3000K, with a brightness of 118 lumens.

The niche includes a stainless steel connection box and cover which are inserted into the waterproofed and factory assembled plastic connection box, ensuring a code-compliant LED system. Also included is a self-adhesive KERDI patch used for proper thin-set mortar adhesion and to prevent mortar from entering the connection box. It is not intended for waterproofing.

Waterproof and vapor-tight
Integrated waterproof cable connection box
Compliant with NEC and CEC codes
Kit includes LIPROTEC LED light strip and profile
Designed for vertical installation
Available in three different sizes
Larger size includes prefabricated, adjustable KERDI-BOARD shelf
