Description

Mitering the tile edge, using a cutting disc and Bullnose profiling the edge tile, using a shaped grinding wheel
FIXING KIT ART. 37C : Particularly convenient for the series production of small parts such as skirting boards. The Fixing Kit allows the machine to be clamped on a plane support surface, manually moving the tile on the machine. It is possible to fix the stand on the Sigma ‘Workbench’ without the use of tools
In the ‘Jolly’ configuration allows cutting at any angle between 40° and 50°. (Y) , with baton adjustment (X), it can work in a single pass tiles with thickness 5-20 mm and size from 30 cm to infinit
In the “Half Bull “allows the execution of round bevels (BULL) with radius 6 – 8 – 10 mm. It is possible to adjust the position of the grinding wheel ( X;Y ) to obtain the right machining
WIDE SHELF : Wide table top ensures perfect stability when working, the specific material of the table top allows easy sliding without scratching the tile
UNIVERSAL ATTACHMENT FOR GRINDERS : It is possible to mount any any grinder from 700 to 1400 W thanks to its 5/8”-11 connection
DUST EXTRACTION : Dust-free working thanks to universal vacuum connection
WITH OR WITHOUT WATER : Specially designed to be able to work in both ways. Use the “WATERKIT it is possible to work with an adjustable water jet for the maximum finish and to limit tool wear
HANDLES : When working on top of the tile, the handles provide an excellent grip without losing stability

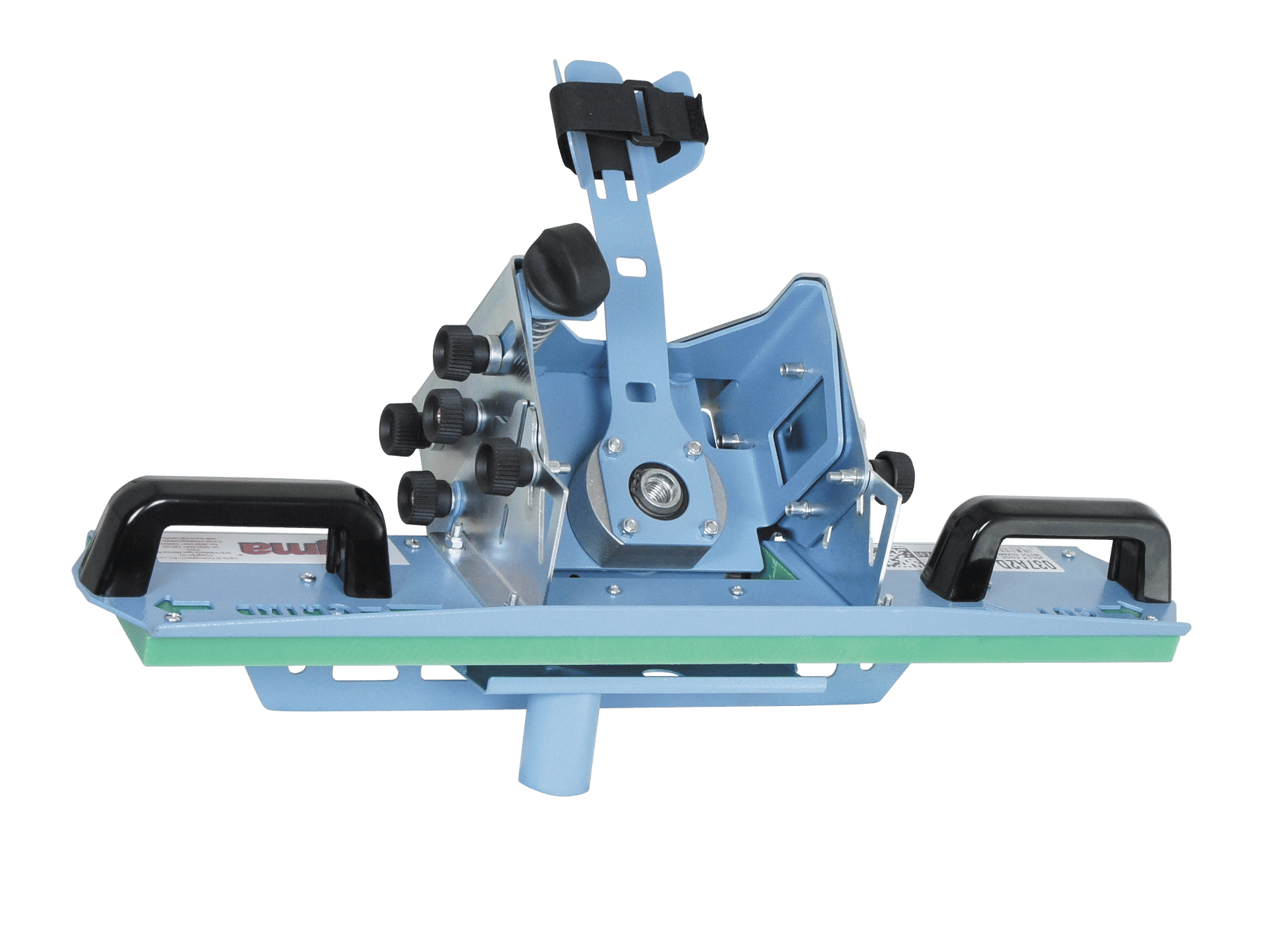

The machine 37A2D-37A2PD with the kit 37C, to be fixed on a table, and recommended for long and narrow tile working, like skirting tiles
